Wrap & Seal Pipe Burst Tape
Wrap & Seal Pipe Burst Tape is a waterproof pipe repair tape made from self-amalgamating silicone which stretches by three times its length. As it is wrapped around pipework, it fuses to form a solid rubber band which seals live leaks. Wrap & Seal has WRAS approval and makes repairs to pipes of most materials and diameters.
The effectiveness of Wrap & Seal comes from being twice the thickness of other self-fusing waterproof repair tapes, its extra stretch and its unique tapered profile enabling more pressure to be applied per wrap.
Multiple tapes applied over each other will amalgamate in the same way, building a repair capable of withstanding up to 30 bar. Wrap & Seal is temperature resistant to 200°C and effective on steel, stainless steel, copper, malleable iron, GRP, ceramic, most plastics, clay, concrete, rubber, and lead.
It is suitable for fixing leaks in applications ranging from small domestic plumbing problems through to large scale industrial pipe repairs. Because it is effective on live leaks, using Wrap & Seal avoids costly and disruptive shutdowns of systems.
No prior training is required before using Wrap & Seal. Simply follow the instructions provided. It can be used on pipes carrying hot water and chemicals.
Wrap & Seal is WRAS approved, meaning that it can be used safely with drinking water. The versatility of the product makes it suitable for wrapping other types of pipes, including car exhausts and hoses. It can also be used in electrical applications for insulation and repairing damaged cables.
Wrap & Seal Pipe Burst Tape Details
Wrap & Seal is easy to use and depending on the pipe size, pressure and number of tapes being used, repairs can be carried out in under 15 minutes.
The repair begins by anchoring the waterproof tape next to the leak area. Using the centre line as a guide, the tape is stretched to its maximum and wrapped around the pipe until it runs out. The unique tapered profile of Wrap & Seal stops water from tracking underneath the tape, maximising surface contact.
Each layer of tape increases the pressure resistance of the repair. To determine how many layers or tapes are required for a specific application, please use the Calculator tab to enter the repair details.
When repairing holes up to 20mm on pipe diameters in excess of 150mm, a SylPad Pressure Resistance Multiplier can be used in conjunction with Wrap & Seal.
SylPad better concentrates the elastic force of Wrap & Seal directly over the lean on larger diameter pipework, multiplying pressure resistance by up to three times.
Repairs made with Wrap & Seal should be reinforced by applying a SylWrap Pipe Repair Bandage over the tape. SylWrap offers a rock hard, impact resistant layer of protection which turns the repair permanent.
Both Wrap & Seal and SylWrap Bandage are available in the Universal Pipe Repair Kit which contains all the equipment needed for fixing live leaks in an emergency. For a kit that allows for multiple pipe repairs to be carried out, then please see the Contractor Case.
Benefits of Wrap & Seal Pipe Burst Tape
- Tape is extra thick and stretches by 300% for a high pressure seal
- Easy to use – just follow the instructions provided to tape the leaking pipe
- Repairs can be carried out to pipes without the need to turn off flow
- Tape can be easily removed if necessary and leaves no residue
Applications
- Copper pipe repair, PVC plastic pipe repair, steel pipe repair, iron pipe repair, GRP pipe repair, ceramic pipe repair, concrete pipe repair, lead pipe repair, rubber pipe repair
- Domestic plumbing repairs and large scale industrial applications
- WRAS approved for repairs to pipes carrying drinking water
- Repairs to non-plumbing pipes, such as car exhausts and hoses
- Wrapping damaged cable, insulating terminal blocks and sealing around cable glands
Technical Data
Data | |
Operating Temp | -90°C to 200°C |
Pressure Resistance | See Repair Calculator |
Max Elongation | 450% |
Tensile Strength | 9.7 MPa |
Product Codes
Code | Tape Size |
PB-25x2HD | 25mm x 2m |
PB-50x4HD | 50mm x 4m |
PB-50x11HD | 50mm x 11m |
TDS Downloads
Wrap & Seal Pipe Burst Tape Repair Calculator
The below Wrap & Seal Calculator can be used to determine the recommended number of Wrap & Seal Pipe Burst Tapes required to seal a live leak based on pipe diameter and pressure.
Enter the diameter of the pipe in millimetres, water pressure and the size of the hole requiring sealing in millimetres. The safety factor is a multiple to include a margin of safety. For example, if pipe pressure is 5 bar and you want a safety factor of two, the calculator will formulate a repair capable of withstanding 10 bar.
After entering your data, selecting the size of Wrap & Seal will determine how many of that specific tape are required for your repair. Repairs being made to pipes in excess of 150mm diameter with Wrap & Seal PB-50x4m or PB-50x11m should be made in conjunction with SylPad.
Calculations serve as a guide to potential maximum pressure resistance only. Actual pressure resistance depends upon pipe material, condition, hole size, leak type and tension maintained during wrapping. If you are unsure, more than one Wrap & Seal can be used to stop the leak.
Wrap & Seal Pipe Burst Tape Case Studies
Case Study: Alcohol Line Live Leak Pipe Repair at Sugar Mill in Costa Rica
Case Study: 6 Bar Live Leak Repair to 300mm Steel Pipe at Malaysia Water Treatment Plant
Case Study: Leaking Welded Saddle Joint Repair on 150mm Steel Pipe at Pumping House
Case Study: Live Leak Repair of 150mm Cement Coated Steel Pipe on Water Network in Mexico
Case Study: Repair of Leaking Stainless Steel Pipe Inside Farm Biodigester Tank
Case Study: Wastewater Treatment Plant Seal Pipe Flange Against Tree Root Ingress
Case Study: Live Leak Pipe Repair of Above and Below Ground Water Supply Pipelines
Case Study: Steel District Heating System Pipe Suspended in Ceiling Live Pinhole Leak Repair
Case Study: Live Leak Contaminated Water Pipe Repair at a Wastewater Treatment Works

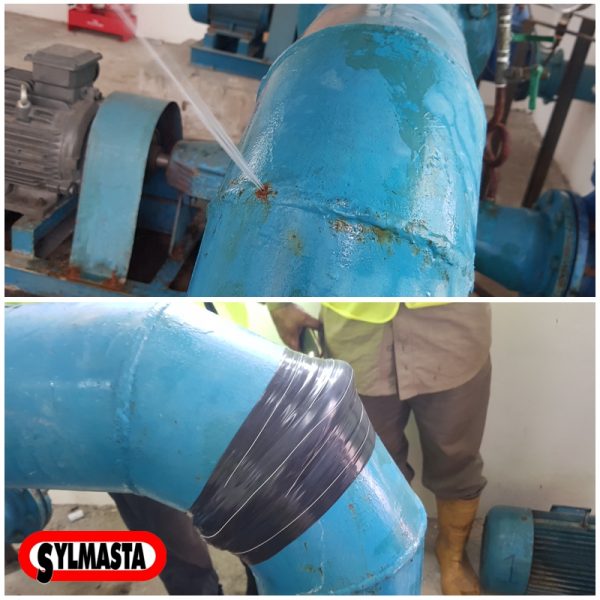

Case Study: Live Leak Pinhole Repair on 150mm Elbow at Pumping House in Malaysia
Case Study: Repair of a Leaking 200mm Fuel Oil Line Pressure Resistant to 44 bar in Libya
Case Study: Bahrain International Airport Repair of Leaking Step Joint on 100mm UPVC Pipe
Case Study: 650mm Ductile Iron Pipe Located in Pit Undergoes Live Leak Coupling Joint Repair
Case Study: Live Leak Repair of a Cracked 4 bar 250mm PCCP Pipe Stub in Saudi Arabia
Case Study: Emergency Repair of Hospital 300mm Air Conditioning Pipe on Hottest Day of June
Case Study: Buried 600mm Asbestos Cement Pipe Leaking Sleeve Repair in Mexico
Case Study: Repair of an 80mm Split to a Plastic Hose Supplying Water to a Pond
Case Study: Extending the Life of 20m Pipe Bridges Through Leak Repair & Reinforcement
Case Study: Leak Repair & Encapsulation of a Steel & Iron Welded Pipe Joint
Case Study: Badly Soldered Domestic Copper Pipe Leaking Joint Repair
Case Study: Stainless Steel Pipe Repair Inside a Biomass Plant Heating Tank
Case Study: Argentina Oil Well 900mm Steel Pipe Surface Restoration & Repair
Case Study: Heavily Corroded Pipe Repair Keeps a District Heating System Running
Case Study: Repair and Reconnection of a Ruptured 20bar Cast Iron Water Supply Pipe
Case Study: Repair of a Cracked PVC Pipe in a Swimming Pool Filtration System
Case Study: Underground Heating Pipe with Insulation Lagging Repair on a Farm
Case Study: High Temperature Live Leak Pipe Repair in an on-site CHP Plant
Case Study: Repair of a Cracked Contaminated Water Pipe in a Puerto Rico Power Station
Case Study: Burst Underground Water Main is Repaired After 15 Years of Leaking
Wrap & Seal Pipe Burst Tape Videos
Emergency repair of a pressurised leak

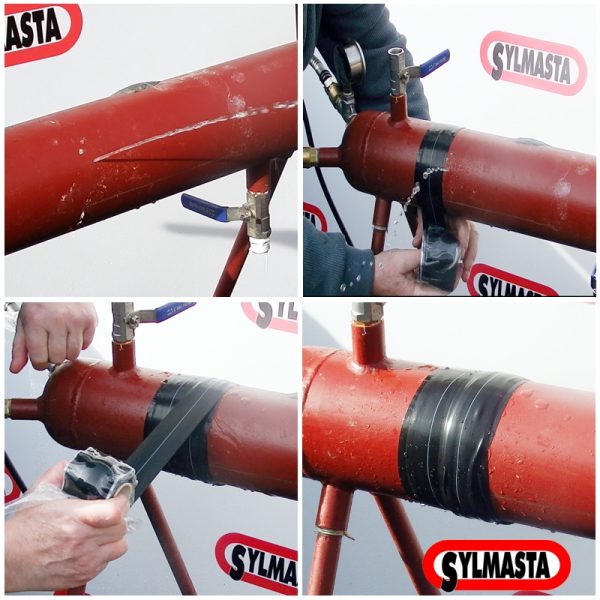

Wrap & Seal Pipe Burst Tape is used to seal a pressurised leak on a steel pipe during a live demonstration at a water company.
In this repair, the Wrap & Seal is applied and then overwrapped with SylWrap to make the repair permanent. Please see SylWrap Universal Pipe Repair Kits for more information.
