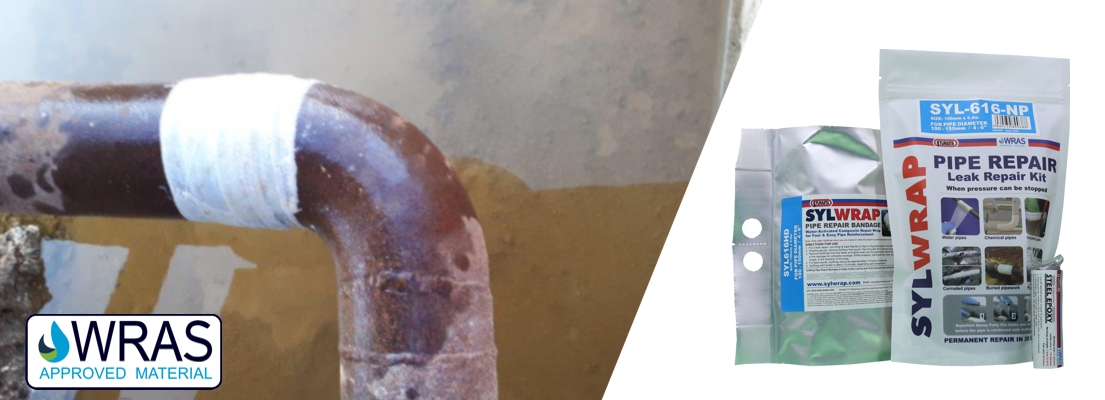

SylWrap Standard Pipe Repair Kit
The SylWrap Standard Pipe Repair Kit permanently seals a burst or leaking pipe where pressure can be turned off in under 30 minutes. It enables any user to make a WRAS approved offline repair to steel, stainless steel, iron, copper, PVC, GRP, clay, ceramic, concrete and rubber pipes by following a simple two-stage process.
Fixing a leaking pipe with a Standard Kit costs a fraction of replacement. It eliminates the expense of hiring a plumber or contractor and the potential wait for availability to make a repair. Systems can go back into operation sooner, reducing downtime.
Repairs made using the Standard Kit are pressure resistant to 30 bar, temperature resistant to 120ºC and effective on pipes carrying hot and cold water and chemicals. WRAS approval means the Standard Kit is certified as safe to use on pipes carrying drinking water.
Effective repairs can be made around difficult elbow joints, tee joints and welded joints, offering a more flexible and versatile option compared to heavy, bulky pipe repair clamps.
No operational training is required to use the Standard Kit. It makes repairs varying from small-scale leaks in domestic kitchen and bathroom plumbing to sealing hydrogen lines in North American power stations.
Other industries where Standard Kits are found include quarries, mines, wastewater treatment, district heating, agriculture, petrochemical plants, oil rigs, nuclear power, freight ships, super yachts and within public buildings including hospitals, hotels and airports.
SylWrap Standard Pipe Repair Kit details
The Standard Kit contains Superfast Epoxy Putty Stick and a SylWrap Pipe Repair Bandage. Superfast Epoxy Putty is kneaded by hand until it turns a uniform colour. It is then pushed into the hole or crack requiring repair.
Within 5-10 minutes, the putty will harden inside the hole or crack. It forms a watertight material as hard as steel, sealing the leak with pressure resistance to 30 bar.
The second stage of the repair sees the putty overwrapped with SylWrap Pipe Repair Bandage. SylWrap is a composite repair wrap with a water-activated resin. When wrapped and smoothed around pipework, it sets to provide a rock-hard, impact resistant protective shell.
For live leak pipe repair where pressure cannot be turned off, please see the SylWrap Universal Pipe Repair Kit. The Universal Kit contains additional Wrap & Seal Pipe Burst Tape for sealing live leaks.
For regular pipe repair users, Sylmasta have developed the SylWrap Contractor Case containing enough products for up to six pipe repairs. The Case is easy to store either on the van or on site and works out at a cheaper cost-per-repair than buying individual Pipe Repair Kits.
The Contractor Case is approved for use by several UK water companies. Engineers who are equipped with a Case have everything needed to make live leak repairs as soon as problems on the public supply network are identified, reducing the loss of precious water.
Benefits of a SylWrap Standard Pipe Repair Kit
- The user can fix a burst or leaking pipe at a fraction of the cost of hiring a plumber
- Repairs can be made easily and in under 30 minutes
- Increases pressure resistance, chemical resistance and improves longevity of pipes
Applications
- Copper pipe repair, PVC plastic pipe repair, steel pipe repair, iron pipe repair, GRP pipe repair, ceramic pipe repair, concrete pipe repair, rubber pipe repair
- Fixing leaking bathroom, kitchen and other household pipes
- Pipe repairs at wastewater treatment works, quarry wash plants, dry risers, petrochemical plants, nuclear power plants, oil rigs and breweries
- WRAS approved for repairs to pipes carrying drinking water
Technical Data
| Data | |
| SylWrap Work Time | 2–5 minutes |
| Functional Cure | 30–45 minutes |
| Full Cure | 24 hours |
| Cured Material Life | 10–20 years |
| Max Service Temp | 120°C / 250°F |
| Max Pressure Resistance | 30 bar |
Product Codes
Please see Pipe Size Guide Tab for SylWrap Standard Pipe Repair Kit product codes
TDS Downloads
SylWrap Standard Pipe Repair Kit Size Guide
The below guide details the size of SylWrap Pipe Repair Bandage and the diameter of pipe each Standard Pipe Repair Kit is designed to repair.
| Product Code | SylWrap Bandage Size | Repairs Pipe Diameter |
| SYL-106-UP | 25mm x 1.8m | Up to 15mm |
| SYL-206-UP | 50mm x 1.8m | 15 – 25mm |
| SYL-212-UP | 50mm x 3.6m | 25 – 50mm |
| SYL-309-UP | 75mm x 2.7m | 25 – 50mm |
| SYL-312-UP | 75mm x 3.6m | 50 – 75mm |
| SYL-412-UP | 100mm x 3.6m | 50 – 100mm |
| SYL-416-UP | 100mm x 5.0m | 75 – 125mm |
| SYL-616-UP | 150mm x 5.0m | 100 – 150mm |
| SYL-633-UP | 150mm x 10.0m | 150 – 300mm |
| SYL-866-UP | 200mm x 20.0m | 300 – 600mm |
SylWrap Standard Pipe Repair Kit Case Studies
Case Study: Burst Copper Pipe Repair in Portable Horse & Dog Shower Unit
Case Study: Boat Owner Repairs Pinhole Leak in Rubber Hose Connected to Engine
Case Study: Leaking Hydrogen Line Pipe Repair at Power Station in Puerto Rico
Case Study: Repair of a Leaking 150mm Steel 90 Degree Elbow Bend at a Quarry Wash Plant
Case Study: Repair of a Cracked 90-year-old 70mm Malleable Iron Water Supply Pipe
Case Study: Repair of a Cracked Copper Pipe in a Camper Van Boiler System
Case Study: Leak Repair of a Pierced 300mm Plastic Pipe in a Quarry Wash Plant
Case Study: Leaking Cast Iron Wastewater Pipe Repair at a London Hotel
Case Study: Pinhole Repair of a Steel Pipe in a Furniture Factory Sprinkler System
SylWrap Universal Pipe Repair Kit Videos
Repair of 3mm pinhole on a 100mm stainless steel pipe
Test repair carried out in the Sylmasta UK Lab to a pinhole leak on a 100mm steel pipe with pressure turned off.
