Case Study: Repair & Refurbishment of Corroded 20 Metre Long Porth Pipe Bridge

Troubled bridge over water – the repair of a dilapidated steel pipeline crossing the Rhonda River

Sylmasta and Arch Services carry out the refurbishment of a dilapidated 20-metre long pipe bridge crossing the Rhonda River in Porth, South Wales, helping to save Dwr Cymru Welsh Water from an expensive replacement of the heavily corroded structure.

Case Study Data

Pipe bridge
Porth, South Wales
Repair Type
300mm steel pipe bridge repair
Significant cracking and weakening of line caused by corrosion

Products Used

Liquid Metal Epoxy Coating
Brush applied to coat pipes and structures with an ultra-smooth, hard wearing, metallic surface

SylWrap CR Pipe Repair Bandage
Composite repair wrap specially formulated to prevent corrosion and strengthen pipes in aggressive environments

Case Study PDF

Case Study Details

Sylmasta were contacted by Dwr Cymru Welsh Water for advice on the repair and refurbishment of of a dilapidated pipe bridge crossing the Rhonda River in Porth, South Wales. The bridge was gravity fed and made up of a 300mm diameter, 20 metre long steel pipe rested inside an angle-iron structure for support and protection.

For such a complex project, it was recommended that the four-stage Sylmasta Pipe Refurbishment System be used as a starting point. A final decision on the repair elements required would be decided once the pipe had been fully inspected.

Dwr Cymru official contractors appointed Arch Services of Porth to carry out the work, and it was agreed that Sylmasta would keep in close communication throughout the project to deal with any questions that might arise.

On inspection, the pipe was discovered to be totally covered in corrosion. This had eaten completely through the steel in several places along the top of the pipe, leaving large holes in the brittle surface.

As these holes were too large or delicate to be repaired with epoxy putty, Arch decided to use fibreglass patches layered over the cracked sections of pipe to seal the leaks. The entire pipe was then coated with Liquid Metal Epoxy Coating.

Liquid Metal is a metal-filled, brushable epoxy. After being coated onto the pipe, it cured to form a smooth, metallic, hard-wearing surface. Several layers of Liquid Metal were used to create an impermeable skin around the original pipe, preventing any further corrosion to the steel and ensuring fluids could no longer escape.

The 90 minute gel time of Liquid Metal allowed significant amounts of epoxy to be mixed without the threat of premature curing. Arch Services used a roller to apply each coating to a 1mm – 2mm thickness, also painting with Liquid Metal the corroded steel hoops and beams which held the pipe in place.

To further reinforce the pipe and reinstate its integral strength, it was wrapped with four layers of SylWrap CR Corrosion Protection Wrap. SylWrap CR is a composite repair bandage incorporated with highly effective corrosion inhibitors.

It has been specially formulated for the prevention of corrosion and the protection and strengthening of pipes, metalwork, and other structures in harsh and aggressive environments.

SylWrap CR was applied to the pipe whilst the final coating of Liquid Metal remained tacky. The resin in SylWrap CR was activated with water and the bandage tightly wrapped and smoothed around the pipe.

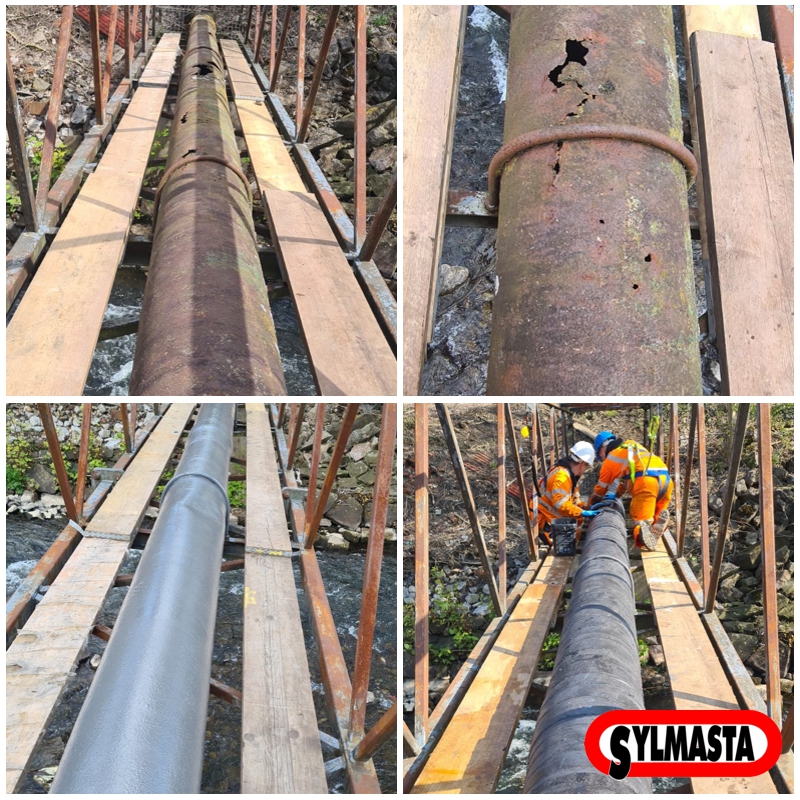

SylWrap CR Corrosion Protection Wrap used to reinforce and repair a pipe bridge in Porth, South Wales

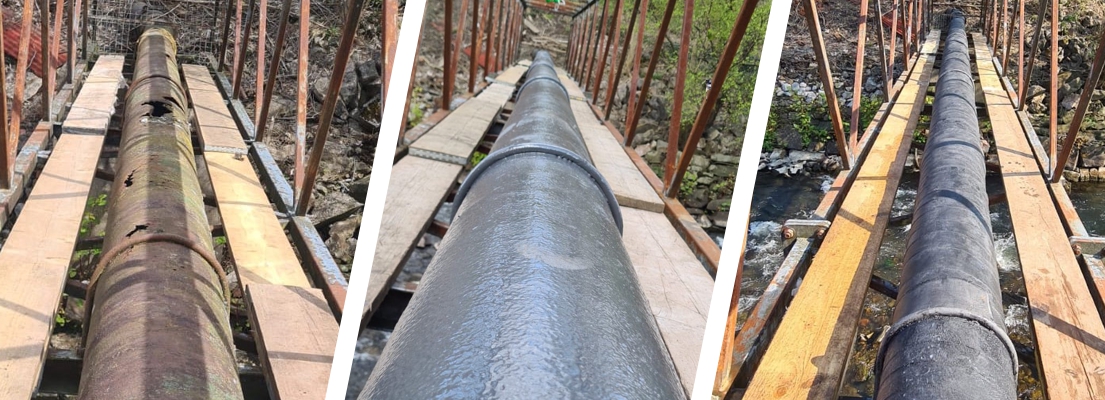

The completed repair along the 20 metre length of the pipe

Within minutes, SylWrap CR cured to form a rock-hard, impact resistant shell around the pipe. Arch Services were particularly careful in ensuring that no area of the pipe was left without SylWrap CR. This required precision application close to the steel hoops.

The final result was a very smart pipe bridge now well protected from future corrosion and reinforced against breaches by Liquid Metal and SylWrap CR. Arch Services have subsequently become Sylmasta’s approved contractor for similar projects after their excellent documentation of the process and attention to detail.
